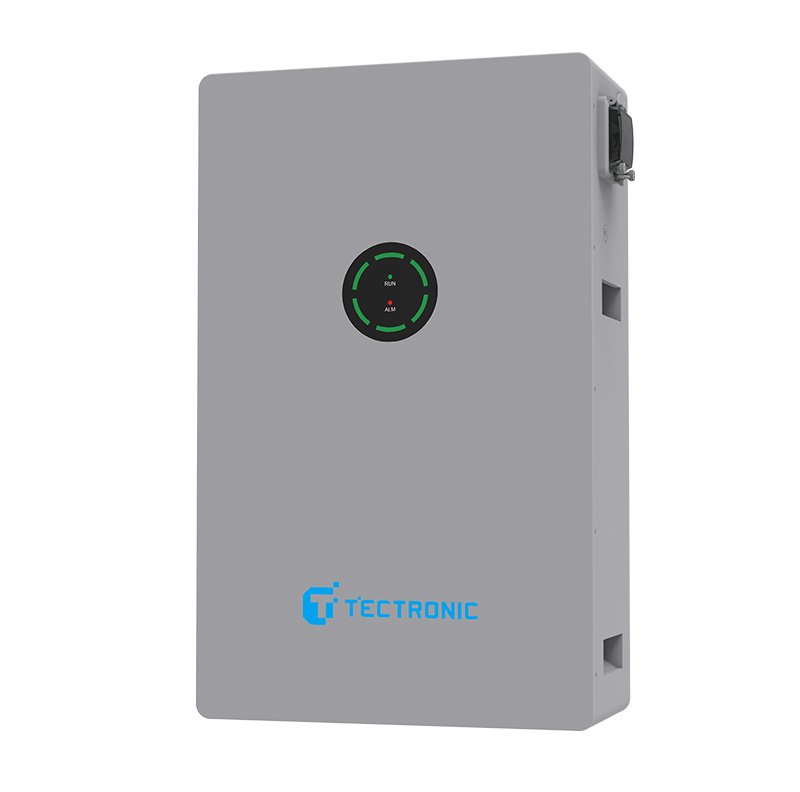

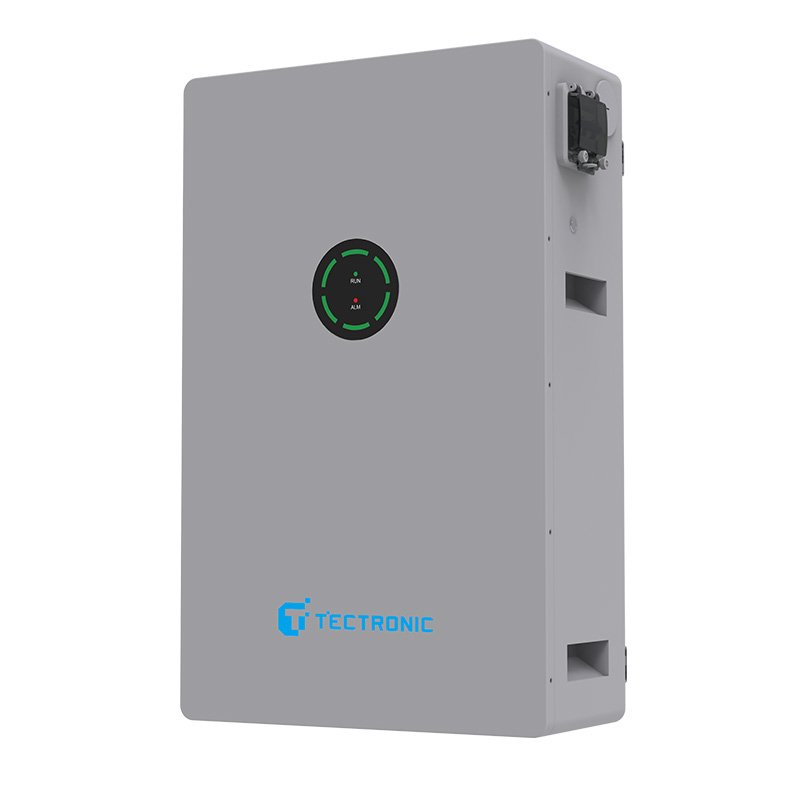

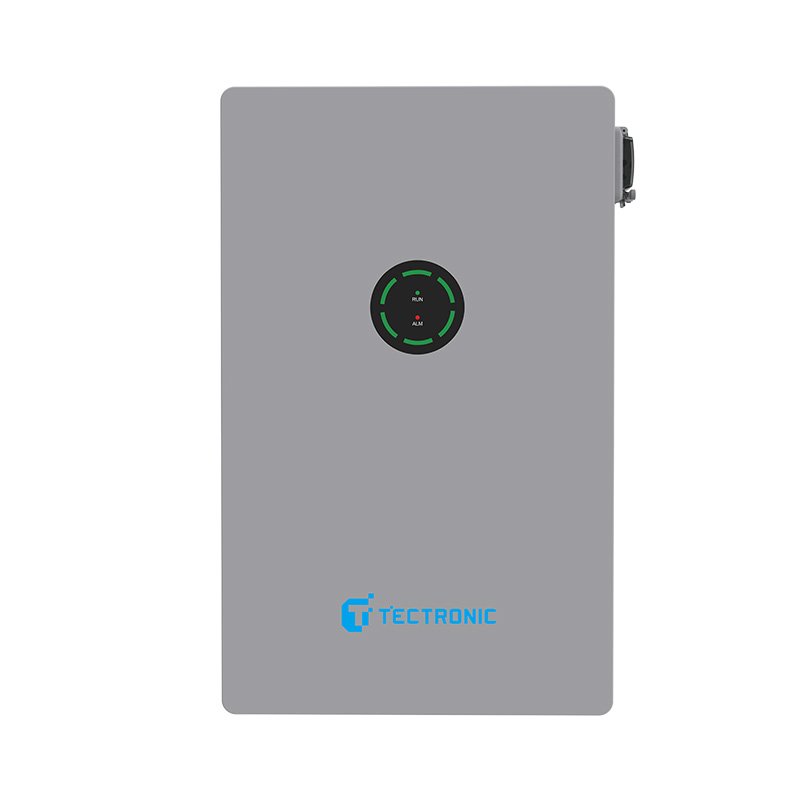

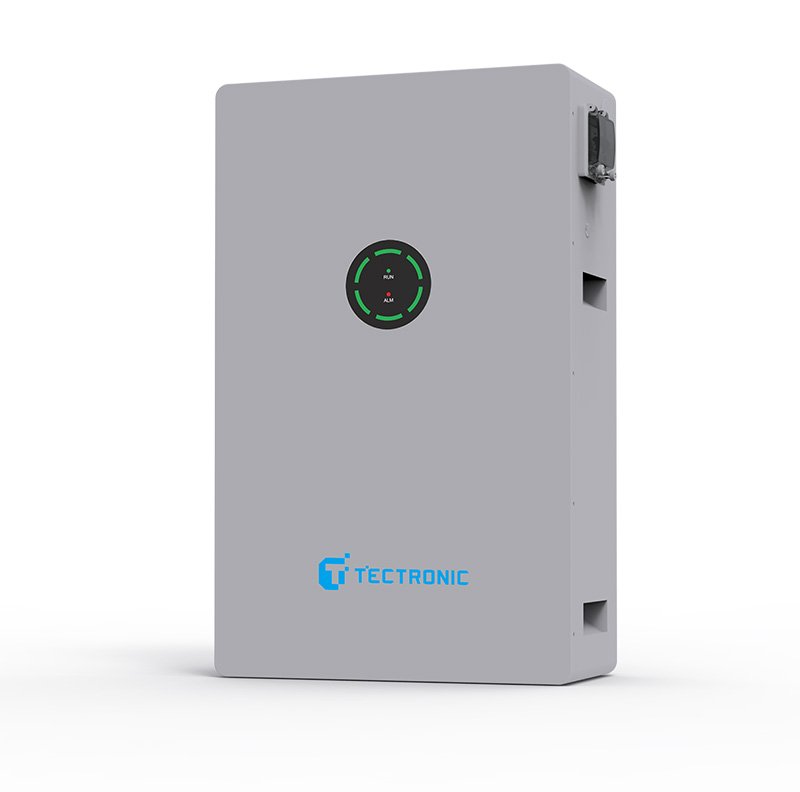

Tectronic Wall Mounted LiFePO4 Battery 51.2V 314Ah 16.076KWh

SugarCube-16kWh is a perfect wall-mounted solar energy lithium battery for residential home use. Built-in with High-Quality LiFePO4 large capacity cells. It ensures a long cycle life of the battery system. The designed BMS is verified to be compatible with different brands of inverters, hybrid on grid&off grid or off grid.

A sleek and space-saving solution for your energy storage needs. With its compact design and easy installation, it seamlessly blends into any environment. Whether in your home, office, or commercial space, our wall-mounted unit provides reliable and efficient energy storage.

FEATURES

Unique Design

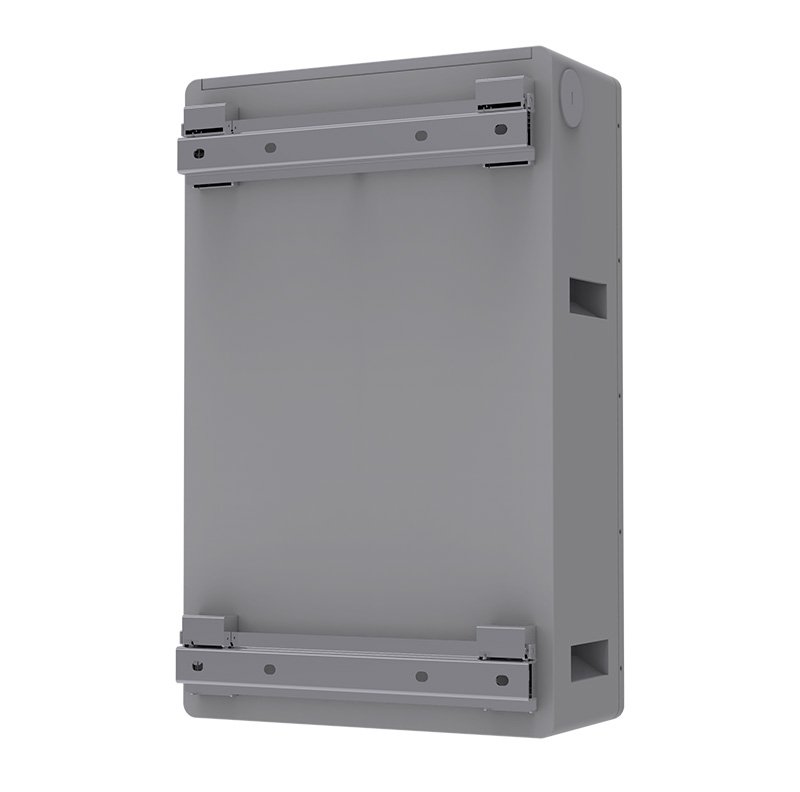

New wall mount design

Flexible Capacity

Max.16 pcs in Parallel to extend capacity

Safe & Reliable

Lithium Iron Phosphate (LFP) Cell

LED Display

SOC, Battery Status

Easy Installation

Quick plug in +/- and parallel connection

UL•certification

UL1973 UL9540A UL9540

Model Description

Product Name Electrical Characteristics	SugarCube-16kWh
Nominal Voltage	51.2V
Rated Capacity	314Ah
Energy	16,076Wh
Battery Chemistry	Lithium Iron Phosphate (LFP)
Cycle Life	8,000 cycles @77°F(25°C), 0.5C/0.5C
Operating Voltage	44.8~56.16V
Communication Interfaces	CAN/RS485/RS232
Scalable	Up to 16 units

Charge & Discharge
Nominal Discharging Current	150A
Nominal Charging Current	150A
Max. Charging/Discharging Current	210A

Environmental
Environment	Indoor/Outdoor
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Storage Temperature	14°F to 113°F (-10°C to 45°C)
Altitude	Maximum 9,843 ft (3,000 m)
Cooling Method	Natural Convection
Ingress Rating	IP65
