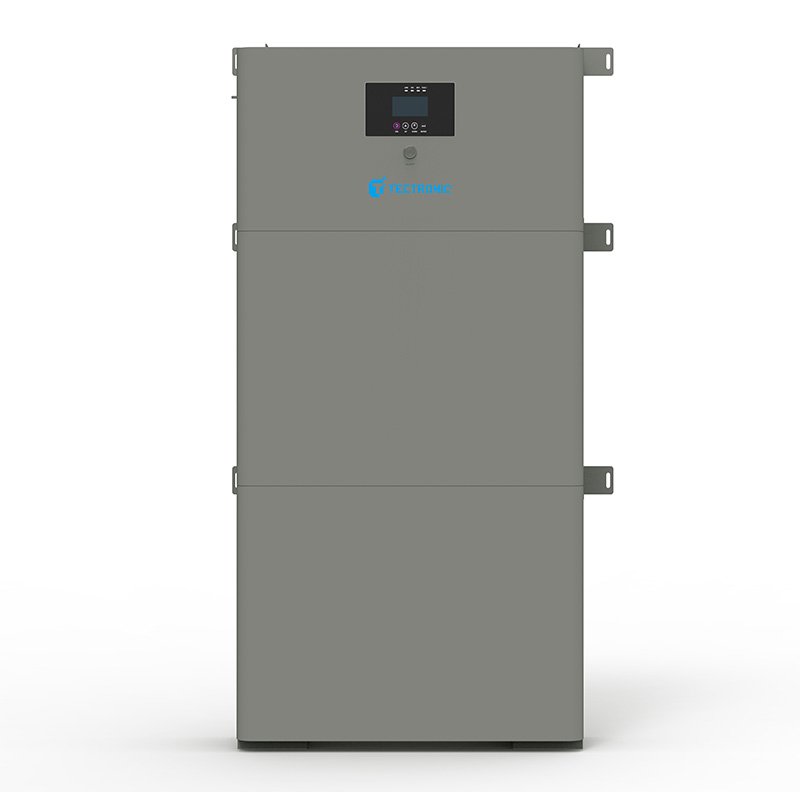

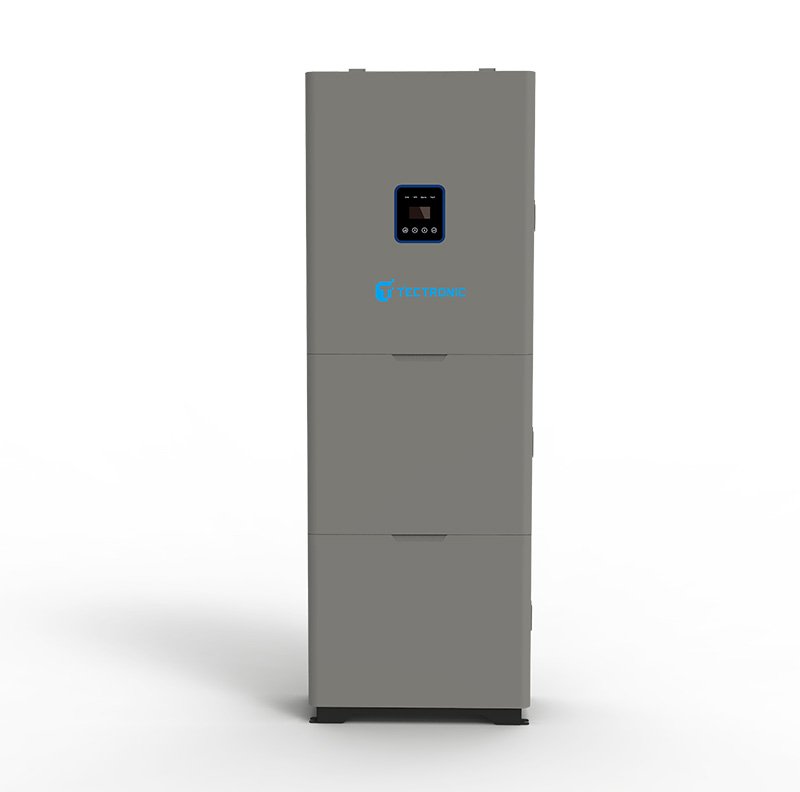

Tectronic Stackable all in one energy storage hybrid power system

An efficient, safe, and intelligent home energy storage solution, featuring a convenient modular battery design and integrated inverter. Seamlessly switch between power sources, remotely control your energy needs, and customize intelligent operating plans.

Each set of all-in-one machine is equipped with a Hybrid off-grid energy storage inverter, optional 1-3 layers of battery cabinets, each battery cabinet can be equipped with 1-2 battery packs, supporting 10.24~30.72 kWh of electricity, for users to choose flexibly.
The battery pack uses high-performance and high-safety lithium iron phosphate batteries. Each battery pack has a battery management system (BMS). BMS can realize comprehensive control and protection of the energy storage battery, extend battery life.

FEATURES

Flexible configuration and easy installation

Modular design, freely configurable according to different needs

Remote Monitoring

APP intelligent control, efficient and convenient (WiFi, bluetooth)

Home Energy Smart Management

Intelligent configuration of energy storage charging and discharging strategies to maximize integrated value

Multi-mode switching

Hybrid, off-grid and grid-connected dual output mode

Model Description

Model	51.2V 200Ah	51.2V 300Ah	51.2V 400Ah	51.2V 500Ah	51.2V 600Ah
Number of layers	1 layers	2 layers	2 layers	3 layers	3 layers
Energy	10.24	15.36	20.48KWh	25.6KWh	30.72KWh
Dimension (LWH)mm	6533201406	6533201962	6533201962	6533202518	6533202518
Weight(KG)	170	228	278	345	395

Technical Specification	LV-AST-1L6K5.12Aa
Operating Voltage Range(V)	43.2V~56.16
Cell technology	Lithium-iron phosphate (LiFePO4)
Life cycle	6000 times @80%DOD 25°C 0.5C
Max. charge/discharge current (A)	190

Input(PV)
Max. Power(kW)	(1, 2 layers) – 12Kw \| (3 layers) – 13kw
Max. DC voltage (V)	500
MPPT voltage range(V)	120~500
Max.Input current of single MPPT(A)	14
MPPT tracker/strings	4/1

Grid Input / Output
Rated output power(kVA)	(1, 2 layers) – 8 \| (3 layers) – 10
Max. apparent Power (kVA)	(1, 2 layers) – 8.8 \| (3 layers) – 11
Max. output current(A)	(1, 2 layers) – 38.3 \| (3 layers) – 47.8
Ac output voltage(V)	120/240(split phase)
Frequency (Hz)	50/60
PF	-0.8~+0.8
THDi	< 3%
AC output topology	Split phase

Output(EPS)
Rated power(kVA)	(1, 2 layers) – 8 \| (3 layers) – 8
Rated output current(A)	(1, 2 layers) – 33.3 \| (3 layers) – 41.6
Rated output voltage(V)	120/240 (split phase)
Rated frequency(Hz)	50/60
Automatic switching time(ms)	<20
THDi	< 2%
Overload capacity	125%,60S/150%,1S

General Data
Display	LCD
Communication	Modbus, RS485, WIFI, 4G
Operating temperature	-20°C~55°C
Environment	Indoor
Relative humidity	5%~95%
Max. efficiency	≥98.2%
North American efficiency	≥97.2%
Cooling	Natural cooling
Certification	UL1973, UL9540A, UL9540, UN38.3, MSDS 51.2V500Ah 51.2V600Ah 6533202518
